Integrating DJI’s cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. [1] It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity. Explore DJI O3 Air Unit price in Bangladesh

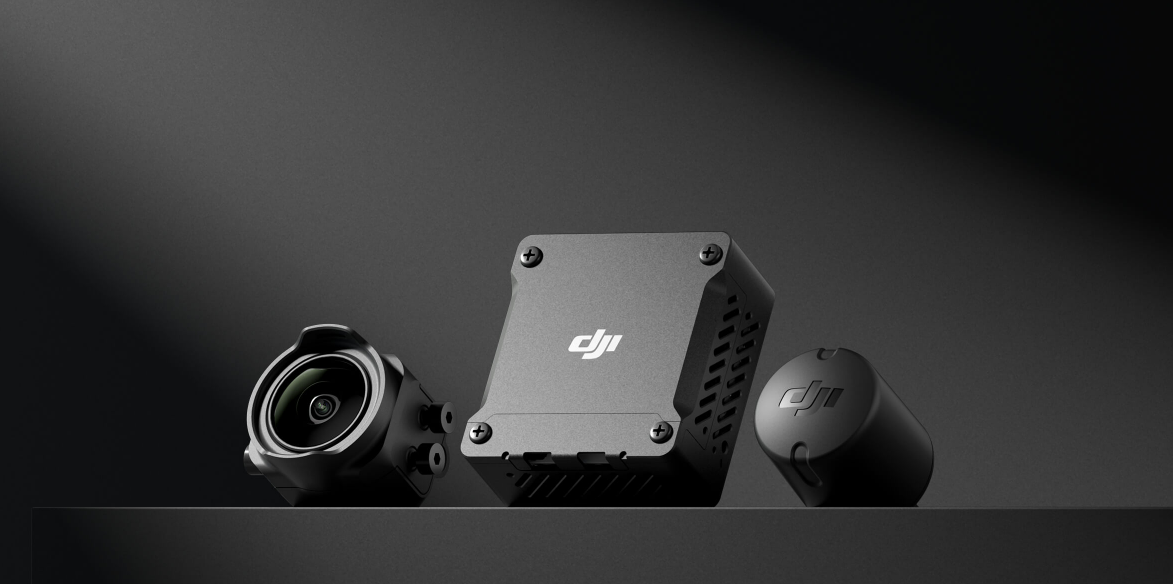

Powered by Flagship Video Transmission
Equipped with DJI O3+ Video Transmission, the DJI O3 Air Unit provides a host of powerful video transmission capabilities. Control your drone with snappy responsiveness and get a crisp, ultra-sharp live feed. The 2T2R omnidirectional antennas further ensure the stability and smoothness of video transmission within the signal coverage range.
DJI O3 Air Unit Overview
The DJI O3 Air Unit is a high-performance FPV (First-Person View) transmission system designed to provide crystal-clear video and ultra-low latency for drone racing, freestyle flying, and aerial cinematography. It combines DJI’s cutting-edge technology with compact design, offering exceptional video transmission quality and flight experience. Find DJI O3 Air Unit price in Bangladesh.
- 4K Video Transmission: The DJI O3 Air Unit features 4K/60fps video recording, capturing high-quality footage with vivid detail and smooth motion, perfect for FPV pilots looking for professional-grade video output.
- Low Latency Transmission: With ultra-low latency of around 30 ms, the O3 Air Unit provides real-time video feedback, ensuring pilots have an immersive, responsive flying experience during high-speed maneuvers.
- High-Quality Video Feed: The unit supports a 1080p/100fps live video transmission to compatible FPV goggles, providing sharp and smooth visuals for pilots, enhancing flight precision and enjoyment.
- Long Range & Strong Signal: The system supports up to 10 km transmission range with stable and reliable video feed, even in challenging environments. It ensures a strong signal with 2T2R omnidirectional antennas, reducing signal loss during flight.
- Advanced Image Stabilization: The O3 Air Unit features RockSteady and HorizonSteady stabilization technologies, delivering smooth and stable footage, even during fast and agile flights.
- Compact & Lightweight: Designed with drone performance in mind, the unit is small and lightweight, minimizing impact on the drone’s speed and agility, making it ideal for FPV drones.
- Customizable for FPV Enthusiasts: The O3 Air Unit allows for custom settings such as exposure and white balance, giving pilots the flexibility to adjust according to their flying environment and preferences.
- Wide Compatibility: It is compatible with DJI FPV Goggles V2 and other DJI systems, making it versatile for users who already own DJI FPV equipment.
The DJI O3 Air Unit is perfect for drone racers, freestyle flyers, and FPV enthusiasts seeking high-quality video, low latency, and reliable performance, whether capturing cinematic footage or pushing the limits in high-speed drone flights.
Camera
Sensor
1/1.7-inch CMOS
Effective Pixels: 48 MP
Effective Pixels: 48 MP
Lens
FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
ISO Range
100-6400 (Auto)
100-25600 (Manual)
100-25600 (Manual)
Shutter
Rolling Shutter
FOV
155°
Video Resolution
With DJI Goggles 3/DJI Goggles Integra/DJI Goggles 2:
4K@30/50/60/100/120fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fpsWith DJI FPV Goggles V2:
4K@30/50/60/100/120fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps
4K@30/50/60/100/120fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fpsWith DJI FPV Goggles V2:
4K@30/50/60/100/120fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps
Video Format
MP4
EIS
Supports RockSteady
Weight
Approx. 8.3 g (coaxial cable included)
Air Unit
Weight
Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g
Dimensions
Transmission Module (L×W×H): 32.5×30.5×14.5 mm
Camera Module (L×W×H): 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm
Camera Module (L×W×H): 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm
Communication Frequency
2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) [1]
5.725-5.850 GHz (RX and TX) [1]
Transmission Power (EIRP)
FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
CE: < 14 dBm
SRRC: < 30 dBm
End-to-End Latency [2]
With DJI Goggles 3/DJI Goggles Integra/DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
Max Video Transmission Range [3]
10 km (FCC), 2 km (CE), 6 km (SRRC)
Supported Flight Control System
The DJI O3 Air Unit supports Betaflight 4.3.0 and higher versions.
Input Voltage
7.4-26.4 V
Operating Temperature
-10º to 40º C (14° to 104° F)
Channels
Supports auto mode
Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
Channels Info
FCC/SRRC/CE:
40 MHz:
Channel 1: 5794.5 MHz20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz
40 MHz:
Channel 1: 5794.5 MHz20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz
Supported SD Cards
microSD (up to 256 GB)
Recommended microSD Cards
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
Supported DJI Goggles
DJI Goggles 3, DJI Goggles Integra, DJI Goggles 2, and DJI FPV Goggles V2
Supported DJI Remote Controller
DJI FPV Remote Controller 3 and DJI FPV Remote Controller 2
DJI Goggles 2
Model
RCDS18
Weight
Approx. 290 g (headband included)
Dimensions
With antennas folded: 167.40×103.90×81.31 mm
With antennas unfolded: 196.69×103.90×104.61 mm
With antennas unfolded: 196.69×103.90×104.61 mm
Screen Size (single screen)
0.49-inch
Resolution (single screen)
1920×1080
Refresh Rate
Up to 100 Hz
Interpupillary Distance Range
56-72 mm
Diopter Adjustment Range
-8.0 D to +2.0 D
FOV (single screen)
51°
Communication Frequency
2.400-2.4835 GHz
5.725-5.850 GHz [1]
5.725-5.850 GHz [1]
Transmission Power (EIRP)
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [1]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
5.8 GHz [1]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Wi-Fi Protocol
Wi-Fi 802.11b/a/g/n/ac
Wi-Fi Communication Frequency
2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) [4]
5.725-5.850 GHz [1]
5.150-5.250 GHz (indoor use only) [4]
5.725-5.850 GHz [1]
Wi-Fi Transmission Power (EIRP)
2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
5.1 GHz [4]: < 20 dBm (FCC/CE/KC)
5.8 GHz [1]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
5.1 GHz [4]: < 20 dBm (FCC/CE/KC)
5.8 GHz [1]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
Bluetooth Protocol
Bluetooth 5.2
Bluetooth Communication Frequency
2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)
< 8 dBm
Max Video Transmission Bitrate [5]
50 Mbps
Video Recording Format
MOV
Supported Video and Audio Playback Formats
MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)
Wi-Fi Wireless Streaming
Supports DLNA Protocol
Operating Temperature
-10° to 40° C (14° to 104° F)
Power Input
DJI Goggles 2 Battery
Supported SD Cards
microSD (up to 256 GB)
DJI Goggles 2 Battery
Capacity
1800 mAh
Voltage
7-9 V (1.5 A)
Type
Li-ion
Chemical System
LiNiMnCoO2
Energy
18 Wh
Charging Temperature
0° to 45° C (32° to 113° F)
Max Charging Power
12.6 W (5 V/2 A, 9 V/1.4 A)
Weight
Approx. 122 g
Dimensions (L×W×H)
73.04×40.96×26 mm
Operating Time
Approx. 2 hours
DJI FPV Goggles V2
Model
FGDB28
Weight
Approx. 420 g (headband and antennas included)
Supported Video and Audio Playback Formats
MP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature
0° to 40° C (32° to 104° F)
Video Recording Format
MOV (video coding format: H.264)
FOV
30° to 54°, adjustable
Image Size: 50% to 100%
Image Size: 50% to 100%
Communication Frequency
2.400-2.4835 GHz
5.725-5.850 GHz [1]
5.725-5.850 GHz [1]
Max Video Transmission Bitrate [5]
50 Mbps
Dimensions
Without antennas: 184×122×110 mm
With antennas: 202×126×110 mm
With antennas: 202×126×110 mm
Transmission Power (EIRP)
2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm5.725-5.850 GHz [1]
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm5.725-5.850 GHz [1]
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
Screen Size (single screen)
2-inch
Power Input
Dedicated DJI Goggles batteries
Supported SD Cards
microSD (up to 256 GB)
Communication Bandwidth
Max 40 MHz
Interpupillary Distance Range
58-70 mm
Refresh Rate
144 Hz
Screen Resolution
1440×810
DJI FPV Goggles V2 Battery
Weight
Approx. 119 g
Dimensions (L×W×H)
73.04×40.96×26 mm
Capacity
1800 mAh
Voltage
Max 9 V
Chemical System
LiNiMnCoO2
Type
Li-Po 2S
Energy
18 Wh
Charging Temperature
0° to 45° C (32° to 113° F)
Max Charging Power
10 W
Operating Time
Approx. 110 mins
DJI FPV Remote Controller 2
Model
FC7BGC
Weight
Approx. 346 g
Communication Frequency
2.400-2.4835 GHz
5.725-5.850 GHz [1]
5.725-5.850 GHz [1]
Transmission Power (EIRP)
2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
5.8 GHz [1]: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)
5.8 GHz [1]: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)
Dimensions (L×W×H)
190×140×51 mm
Operating Time
Approx. 9 hours
Operating Temperature
-10° to 40° C (14° to 104° F)
Charging Time
2.5 hours
