Aircraft
Takeoff Weight
246 g
Standard aircraft weight (including the Intelligent Flight Battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors. Training or examination is not required for flying this product in most countries and regions. Always check local laws and regulations before use.
Dimensions
Folded (without propellers): 138×81×58 mm (L×W×H)
Unfolded (with propellers): 245×289×56 mm (L×W×H)
Max Flight Distance
15.7 km
Max Ascent Speed
5 m/s
Max Descent Speed
3.5 m/s
Max Horizontal Speed (at sea level, no wind)
16 m/s
The max horizontal speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
Max Takeoff Altitude
4000 m
2000 m when taking off with propeller guards.
Max Flight Time
31 minutes
Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 17 kph in a windless laboratory environment, in photo mode (without photo taking operation during flight), and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Wind Speed Resistance
10.7 m/s (Level 5)
Max Pitch Angle
40°
Operating Temperature
0° to 40° C (32° to 104° F)
Global Navigation Satellite System
GPS + GLONASS + Galileo

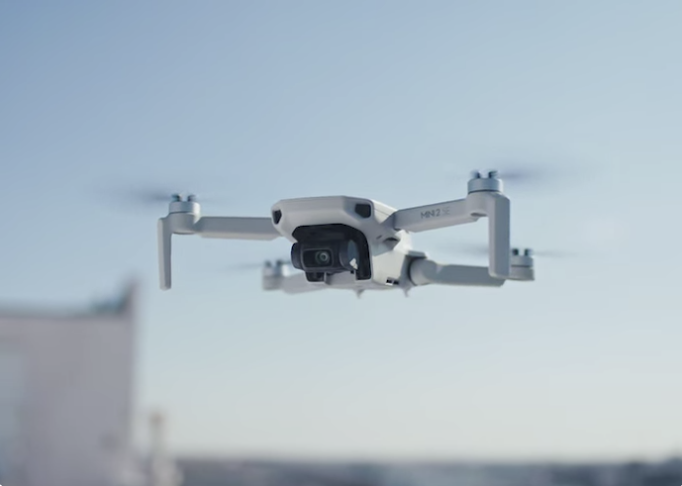

Hovering Accuracy Range
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)
Internal Storage
N/A
Class
C0 (EU)
Camera
Image Sensor
1/2.3-inch CMOS, Effective Pixels: 12 MP
Lens
FOV: 83°
Format Equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞
ISO Range
Video:
100-3200Photo:
100-3200
Shutter Speed
Electronic Shutter: 4-1/8000 s
Max Image Size
4000×3000
Still Photography Modes
Single Shot: 12 MP
Timed: 12 MP
JPEG: 2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 5/7/10/15/20/30/60 s
Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step
Panorama: Sphere, 180°, and Wide Angle
Photo Format
JPEG/DNG (RAW)
Video Resolution
2.7K: 2720×1530@24/25/30 fps
FHD: 1920×1080@24/25/30/48/50/60 fps
Video Format
MP4 (MPEG-4 AVC/H.264)
Max Video Bitrate
40 Mbps
Supported File System
FAT32 (≤ 32 GB)
exFAT (> 32 GB)
Digital Zoom
2.7K: 3×
FHD: 4×
Color Mode
Normal
QuickShots Modes
Dronie, Helix, Rocket, Circle, and Boomerang
Gimbal
Stabilization
3-axis mechanical gimbal (tilt, roll, and pan)
Mechanical Range
Tilt: -110° to 35°
Roll: -35° to 35°
Pan: -20° to 20°
Controllable Range
Tilt:
-90° to 0° (default)
-90° to 20° (extended)
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.01°
Sensing
Downward
Precise Hovering Range: 0.5-10 m
Operating Environment
Downward:
surfaces with discernible patterns, diffuse reflectivity >20% (e.g., walls, trees, people), and adequate lighting (lux >15)
Video Transmission
Video Transmission System
DJI O2
Live View Quality
Remote Controller:
720p/30fps
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP)
2.400-2.4835 GHz:
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:
< 26 dBm (FCC/SRRC)
< 14 dBm (CE)
Max Transmission Distance (free of interference)
FCC: 10 km
CE: 6 km
SRRC: 6 km
MIC: 6 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.
Max Transmission Distance (with interference)
Strong Interference: urban landscape, approx. 1.5-3 km
Medium Interference: suburban landscape, approx. 3-6 km
Low Interference: suburb/seaside, approx. 6-10 km
Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual flight distance.
Lowest Latency
Approx. 200 ms
Depending on the actual environment and mobile device.
Battery
Capacity
2250 mAh
Weight
82.5 g
Nominal Voltage
7.7 V
Max Charging Voltage
8.8 V
Type
Li-ion
Energy
17.32 Wh
Charging Temperature
5° to 40° C (41° to 104° F)
Battery Charging Hub
Input
5 V, 3 A
9 V, 3 A
12 V, 3 A
Output
USB-A:
Max Voltage: 5 V; Max Current: 2 A
Charging Type
Three batteries charged in sequence
Storage
Recommended microSD Cards
16 GB:
SanDisk Extreme32 GB:
Samsung PRO Endurance
Samsung EVO Plus
SanDisk Industrial
SanDisk Extreme V30 A2
SanDisk Extreme Pro V30 A1
SanDisk Extreme Pro V30 A2
Lexar 633x
Lexar 667×64 GB:
Samsung PRO Endurance
Samsung EVO Plus
SanDisk Extreme V30 A1
SanDisk Extreme V30 A2
Lexar 633x
Lexar 667x
Lexar 1000x
Lexar High Endurance
Toshiba EXCERIA M303 V30 A1
Netac Pro V30 A1128 GB:
Samsung EVO Plus
SanDisk Extreme V30 A2
SanDisk Extreme Plus V30 A1
SanDisk Extreme Plus V30 A2
Lexar 633x
Lexar 667x
Lexar 1000x
Lexar High Endurance
Toshiba EXCERIA M303 V30 A1
Netac Pro V30 A1
256GB:
SanDisk Extreme V30 A2

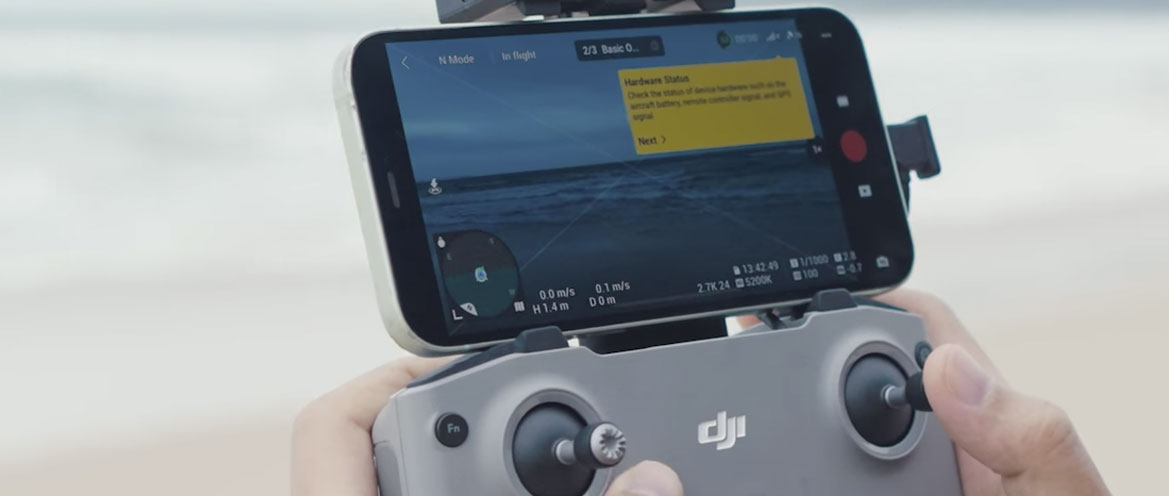

Remote Controller
Max Operating Time
DJI RC-N1 Remote Controller
Without charging any mobile device: 6 hours
When charging a mobile device: 4 hours
Max Supported Mobile Device Size
DJI RC-N1 Remote Controller
180×86×10 mm (L×W×H)
Operating Temperature
DJI RC-N1 Remote Controller
-10° to 40° C (14° to 104° F)
Transmitter Power (EIRP)
DJI RC-N1 Remote Controller
2.400-2.4835 GHz:
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:
< 26 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE)
