DJI Mavic 3 Classic
Aircraft
Takeoff Weight
895 g
Dimensions
Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Max Ascent Speed
8 m/s
Max Descent Speed
6 m/s
Max Horizontal Speed (at sea level, no wind)
21 m/s
No faster than 19 m/s in EU regions.
Max Takeoff Altitude
6000 m

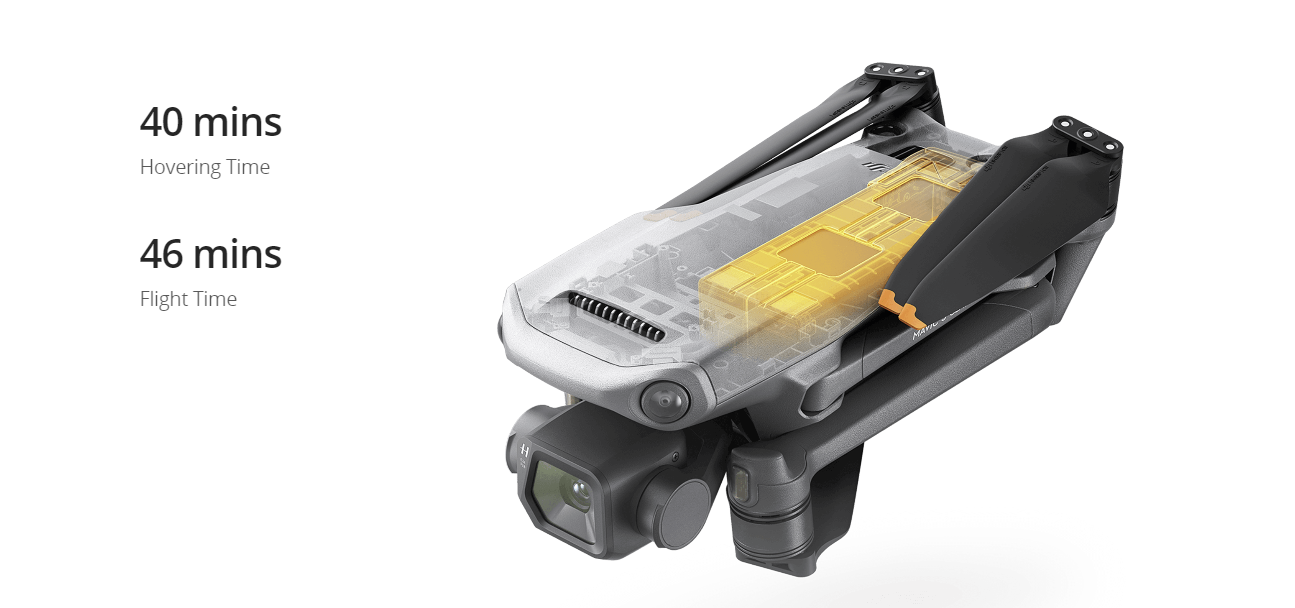

Max Flight Time
46 minutes
Measured in a controlled test environment. Specific test conditions are as follows: flying at a constant speed of 32.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Hovering Time
40 minutes
Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on environment, actual use, and firmware version.
Max Flight Distance
30 km
The flight distance is different from the video transmission distance. The data was tested in a controlled environment, under the following specific test conditions: flying at a constant speed of 50.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Max Wind Speed Resistance
12 m/s
Max Pitch Angle
35°
Operating Temperature
-10° to 40° C (14° to 104° F)
Global Navigation Satellite System
GPS + Galileo + BeiDou
Hovering Accuracy Range
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with high-precision positioning system)
Internal Storage
8 GB (approx. 7.9GB available space)
Class
C1 (EU)

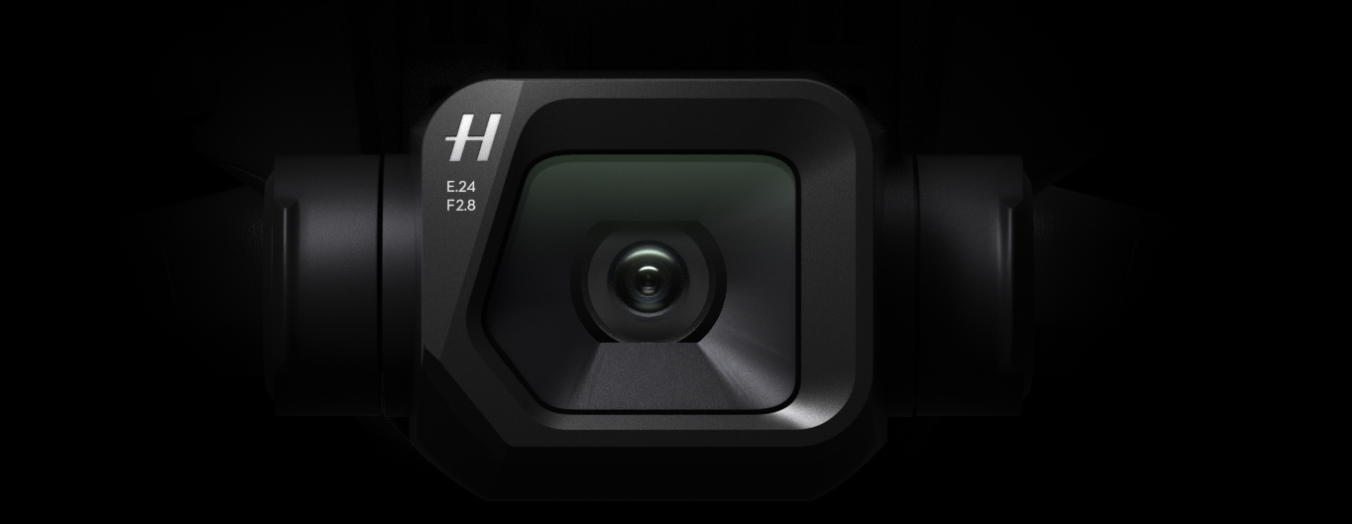

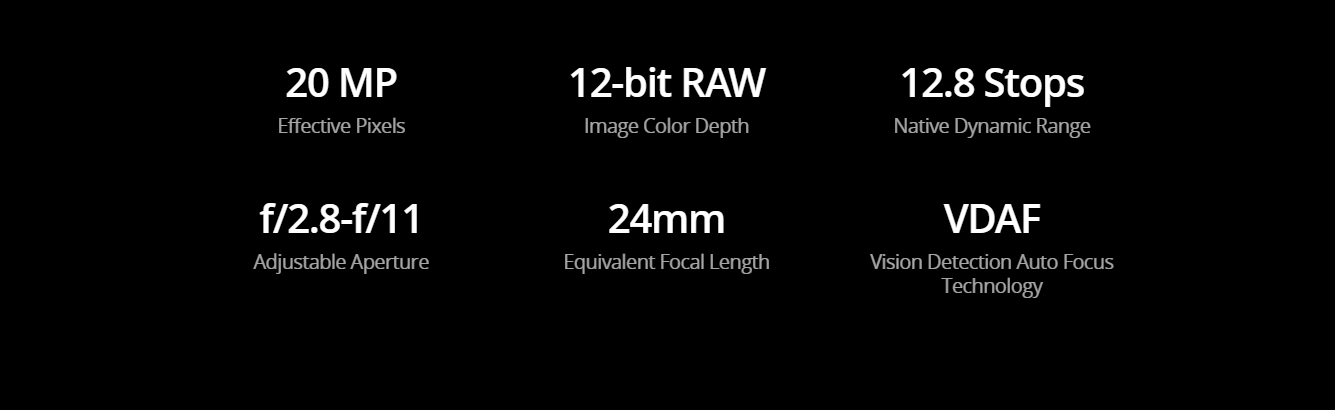

Hasselblad Camera
Image Sensor
4/3 CMOS, Effective Pixels: 20 MP
Lens
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8-f/11
Focus: 1 m to ∞
ISO Range
Video:
Normal, Slow-motion:
100-6400 (normal color)
400-1600 (D-Log)
100-1600 (D-Log M)
100-1600 (HLG)
Night Mode:
800-12800 (normal color)
Photo:
100-6400
Shutter Speed
Electronic Shutter: 8-1/8000 s
Max Image Size
5280×3956
Still Photography Modes
Single Shot: 20 MP
Burst Shooting: 20 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s
Photo Format
JPEG/DNG (RAW)
Video Resolution
H.264/H.265
5.1K: 5120×2700@24/25/30/48/50 fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps
4K: 3840×2160@24/25/30/48/50/60/120* fps
FHD: 1920×1080@24/25/30/48/50/60/120*/200* fps
* Recording frame rates. The corresponding video plays as slow-motion video.
Video Format
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Max Video Bitrate
H.264/H.265: 200 Mbps
Supported File System
exFAT
Color Mode
Normal/HLG/D-Log/D-Log M
Digital Zoom
3× (only in Video Mode)
Gimbal
Stabilization
3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range
Tilt: -135° to 100°
Roll: -45° to 45°
Pan: -27° to 27°
Controllable Range
Tilt: -90° to 35°
Pan: -5° to 5°
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.007°

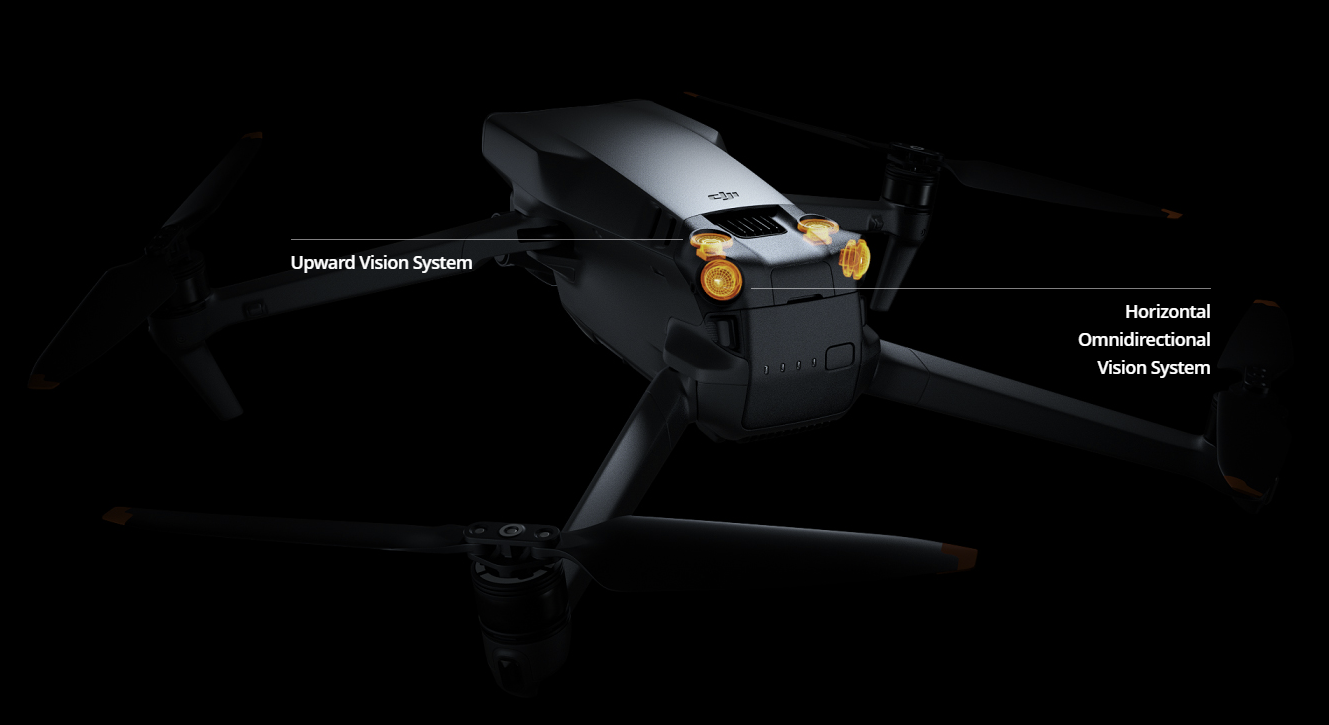

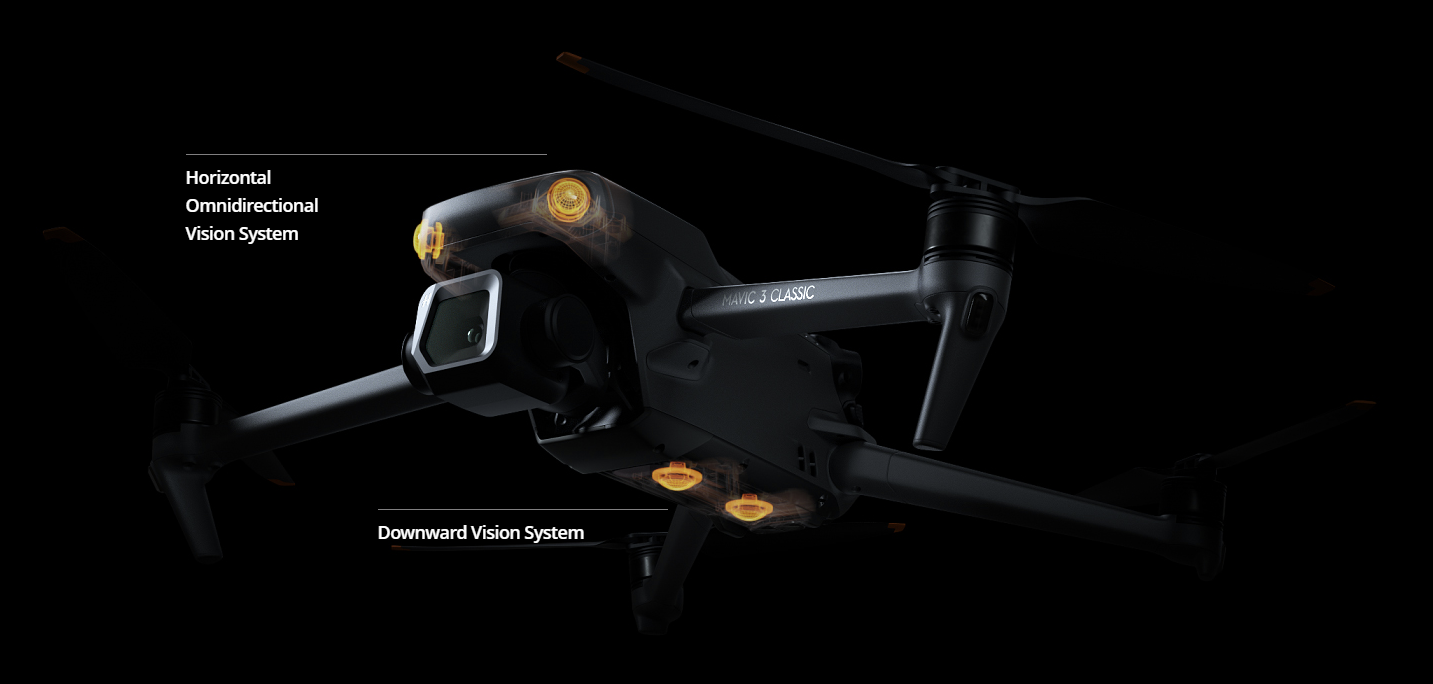

Sensing
Sensing Type
Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
Forward
Measurement Range:
0.5-20 m
Detection Range:
0.5-200 m
Effective Sensing Speed:
Flight Speed ≤ 15 m/s
FOV:
Horizontal 90°, Vertical 103°
Backward
Measurement Range:
0.5-16 m
Effective Sensing Speed:
Flight Speed ≤ 12 m/s
FOV:
Horizontal 90°, Vertical 103°
Lateral
Measurement Range:
0.5-25 m
Effective Sensing Speed:
Flight Speed ≤ 15 m/s
FOV:
Horizontal 90°, Vertical 85°
Upward
Measurement Range:
0.2-10 m
Effective Sensing Speed:
Flight Speed ≤ 6 m/s
FOV:
Front and Back 100°, Left and Right 90°
Downward
Measurement Range:
0.3-18 m
Effective Sensing Speed:
Flight Speed ≤ 6 m/s
FOV:
Front and Back 130°, Left and Right 160°
Operating Environment
Forward, Backward, Left, Right, and Upward:
surfaces with discernible patterns and adequate lighting (lux >15)
Downward:
surfaces with discernible patterns, diffuse reflectivity >20% (e.g. walls, trees, people), and adequate lighting (lux >15)
Video Transmission
Video Transmission System
O3+
Live View Quality
Remote Controller:
1080p/30fps, 1080p/60fps
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Transmission Power (EIRP)
2.400-2.4835 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
Max Transmission Distance (free of interference)
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.
Max Transmission Distance (with interference)
Strong Interference: urban landscape, approx. 1.5-3 km
Medium Interference: suburban landscape, approx. 3-9 km
Low Interference: suburb/seaside, approx. 9-15 km
Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual flight distance.
Max Download Speed
O3+:
5.5 MB/s (with DJI RC-N1 Remote Controller)
15 MB/s (with DJI RC Pro)
5.5 MB/s (with DJI RC)
Wi-Fi 6: 80 MB/s*
* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the internal storage. Download speeds may vary depending on the actual conditions.
Lowest Latency
130 ms (with DJI RC-N1 Remote Controller)
120 ms (with DJI RC Pro)
130 ms (with DJI RC)
Depending on the actual environment and mobile device.
Antennas
4 antennas, 2T4R
Battery
Capacity
5000 mAh
Weight
335.5 g
Nominal Voltage
15.4 V
Charging Voltage Limit
17.6 V
Type
Li-ion 4S
Energy
77 Wh
Charging Temperature
5° to 40° C (41° to 104° F)
Charging Time
Approx. 96 minutes
Use the included data cable of the DJI 65W Portable Charger.
Charger
Input
100-240 V (AC), 47-63 Hz, 2 A
Output
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A
Rated Power
65 W
Battery Charging Hub
Input
USB-C: 5-20 V, max 5 A
Output
Battery Port: 12-17.6 V, max. 5 A
Rated Power
DJI Mavic 3 Battery Charging Hub: 65 W
DJI Mavic 3 Battery Charging Hub (100W): 100 W
Charging Type
Three batteries charged in sequence
Compatibility
DJI Mavic 3 Intelligent Flight Battery
Car Charger
Input
Car Power Input:
12.7-16 V, 6.5 A, rated voltage 14 V (DC)
Output
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A
Rated Power
65 W
Charging Temperature
5° to 40° C (41° to 104° F)
Storage
Recommended microSD Cards
Lexar 1066x 64GB V30 A2 microSDXC
Lexar 1066x 128GB V30 A2 microSDXC
Lexar 1066x 256GB V30 A2 microSDXC
Lexar 1066x 512GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk High Endurance 128GB V30 microSDXC
SanDisk High Endurance 256GB V30 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas Go! Plus 256GB V30 A2 microSDXC
Kingston Canvas Go! Plus 512GB V30 A2 microSDXC
Remote Controller
Max Operating Time
DJI RC-N1 Remote Controller
Without charging any mobile device: 6 hours
When charging a mobile device: 4 hours
Max Supported Mobile Device Size
DJI RC-N1 Remote Controller
180×86×10 mm (L×W×H)
Operating Temperature
DJI RC-N1 Remote Controller
-10° to 40° C (14° to 104° F)
Transmitter Power (EIRP)
DJI RC-N1 Remote Controller
2.400-2.4835 GHz:
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 26 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE)
