Soak up the sky with DJI Goggles Integra and experience immersive, first-person flight.

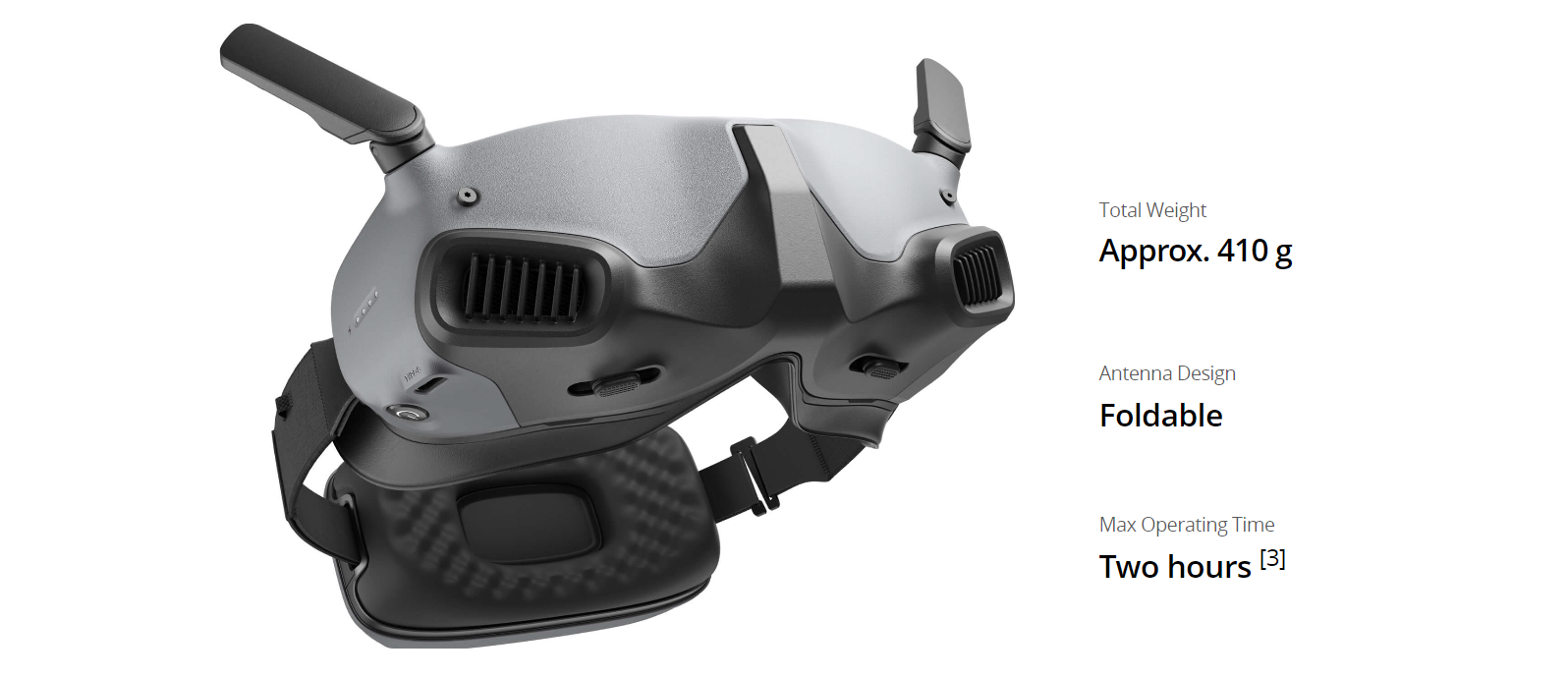

Combined for Convenience
The lightweight DJI Goggles Integra adopts an integrated design that combines headband and battery into one, getting rid of pesky cables and allowing you to effortlessly take the goggles on and off.
The built-in battery headband feels lightweight, balanced, and comfortable to wear. [2]
DJI Goggles Integra can be used while charging and will stay powered through several full-battery drone flights. So you can keep soaring all day. Discover the DJI Goggles Integra price in Bangladesh.

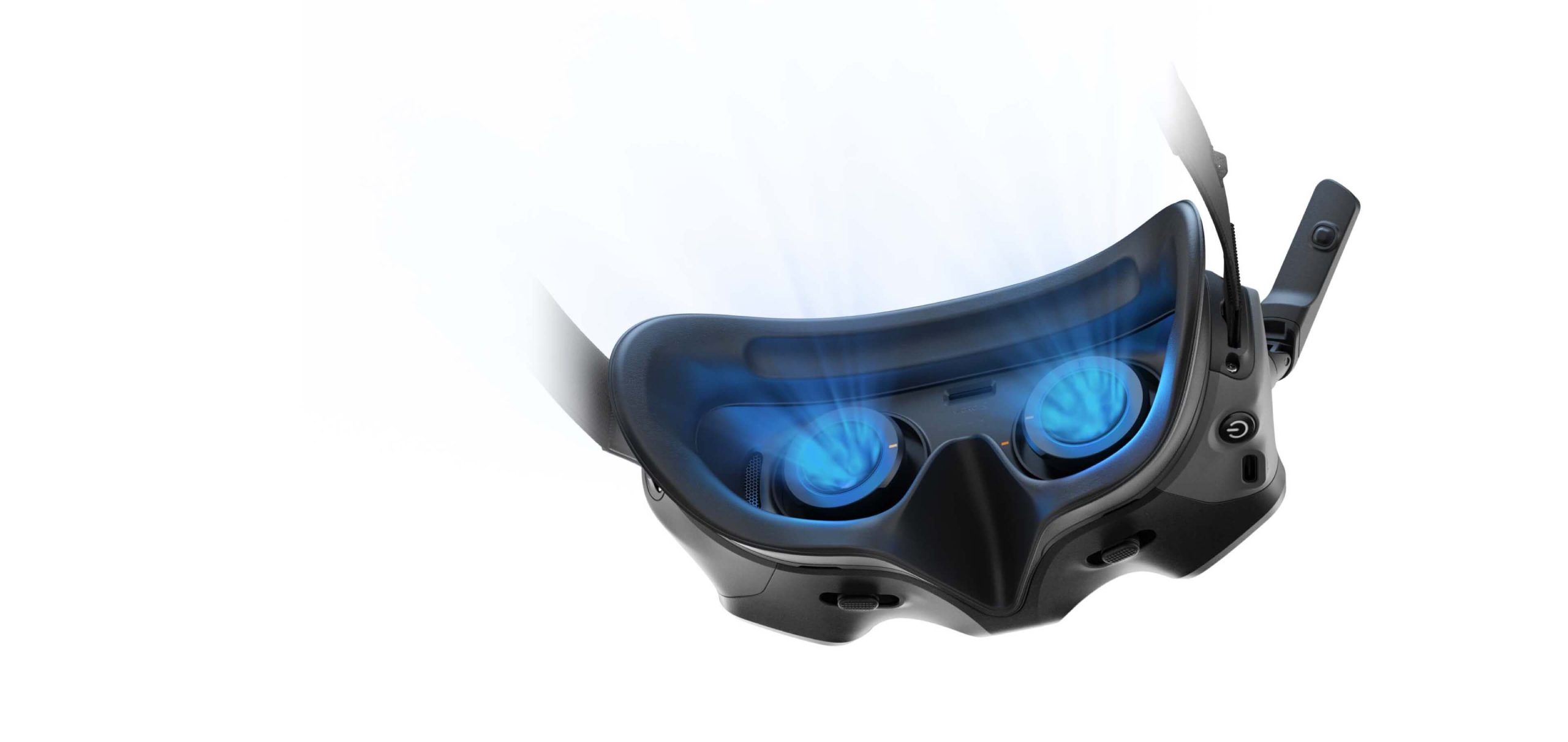

HD Display
DJI Goggles Integra is equipped with two HD Micro-OLED screens to deliver true-to-life colors and highlight-shadow details. The high screen refresh rate presents the fun of flight in a smoother and more fantastic way.
Screen Resolution
1080p
Max Brightness
700 nits
DJI Goggles Integra Overview
The DJI Goggles Integra are advanced FPV (First-Person View) goggles designed to provide an immersive and high-quality flying experience with DJI drones.
Key Features:
- Clear and Bright Displays: The Goggles Integra feature high-resolution screens that deliver vivid colors and sharp details, making your flying experience visually stunning.
- Low-Latency Transmission: With advanced transmission technology, these goggles ensure smooth video streaming from your drone, allowing you to see what your drone sees in real-time without delay.
- Lightweight and Comfortable: Designed for extended use, the Goggles Integra are lightweight and have comfortable padding, ensuring you can wear them for long flights without discomfort.
- Easy Fit for Everyone: The goggles come with adjustable straps and a flexible design, making them easy to wear and fit securely on various head sizes.
- User-Friendly Controls: Navigate through settings and menus easily, allowing you to customize your flying experience without hassle.
- Enhanced Battery Life: With improved battery efficiency, the Goggles Integra offers extended flying sessions, so you can enjoy more time in the air.
- Versatile Compatibility: These goggles are designed to work seamlessly with a range of DJI drones, providing flexibility for different flying styles and preferences.
The DJI Goggles Integra are perfect for drone enthusiasts who want a high-quality, comfortable, and immersive FPV experience, making every flight exciting and enjoyable!
Goggles
Model
RCDS13
Weight
Approx. 410 g (battery included)
Dimensions (L×W×H)
With antennas folded: 170×104×75 mm
With antennas unfolded: 205×104×104 mm
With antennas unfolded: 205×104×104 mm
Screen Size (single screen)
0.49-inch
Resolution (single screen)
1920×1080
Refresh Rate
Up to 100 Hz
IPD Range
56-72 mm
FOV (single screen)
44°
Video Recording Format
MOV
Supported Video Playback Formats
MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)
Operating Temperature
-10° to 40° C (14° to 104° F)
Power Input
Built-in battery
Supported SD Cards
microSD (up to 512 GB)
Recommended microSD Cards
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Lexar 1066x U3 V30 A2 64GB microSDXC
Lexar 1066x U3 V30 A2 128GB microSDXC
Lexar 1066x U3 V30 A2 256GB microSDXC
Lexar 1066x U3 V30 A2 512GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung EVO Plus U3 V30 A2 512GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Lexar 1066x U3 V30 A2 64GB microSDXC
Lexar 1066x U3 V30 A2 128GB microSDXC
Lexar 1066x U3 V30 A2 256GB microSDXC
Lexar 1066x U3 V30 A2 512GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung EVO Plus U3 V30 A2 512GB microSDXC
Video Transmission
Video Transmission
When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
DJI Avata: O3+
DJI Avata: O3+
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
5.725-5.850 GHz
The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
Transmitter Power (EIRP)
2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC/KC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE/KC)
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC/KC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE/KC)
Transmission Latency
1080p/100fps: as low as 30 ms
1080p/60fps: as low as 40 ms
Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.
1080p/60fps: as low as 40 ms
Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.
Max Transmission Distance
When used with DJI Avata or the DJI O3 Air Unit, DJI Goggles Integra can achieve the following max video transmission distance:
10 km (FCC), 2 km (CE), 6 km (SRRC)
When used with DJI FPV, DJI Goggles Integra can achieve the following max video transmission distance:
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
10 km (FCC), 2 km (CE), 6 km (SRRC)
When used with DJI FPV, DJI Goggles Integra can achieve the following max video transmission distance:
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Max Video Bitrate
50 Mbps
Measured in an open outdoor environment without interference. Actual data varies with operating environment.
Measured in an open outdoor environment without interference. Actual data varies with operating environment.
Battery
Weight
Approx. 185 g (headband included)
Dimensions (L×W×H)
120×51×71 mm
Capacity
2450 mAh
Voltage
5.6-8.4 V
Type
Li-ion
Chemical System
LiNiMnCoO2
Energy
17.64 Wh
Charging Temperature
5° to 45° C (41° to 113° F)
Max Charging Power
15 W (charging when powered off)
Operating Time
Approx. 2 hours
